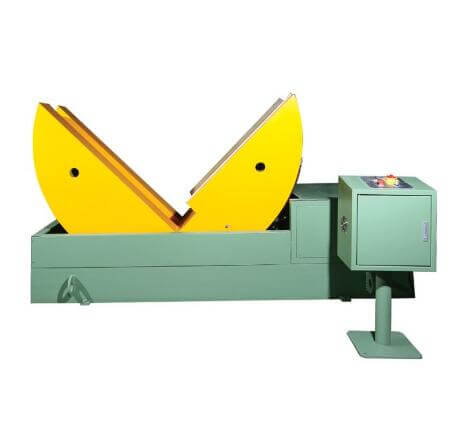

Steel coil upender is the specifically designed machine used to tilt heavy steel coil, aluminum sheet rolls and other round objects and products like buckets, wire spools. The machine is aimed to change the position and direction of the coil products to fit for a more convenient operation. The 90 degree turn over will change the coils from vertical position to horizontal position, from eye to sky to eye to wall, make it easier to load the coils to decoiler.
- 90 degree turn over to change the coil to ideal direction;
- V saddle with anti wearing Nylon boards for bearing the heavy coils;
- Electrical model with chain and gear sprocket mechanism to power the machine;
- Separated control cabinet away from the turn over machine, keep the safety of personnels;
- Four steel made wheels to support the heavy loads.
| Turn over degree | 90° |
| Max load | 5/10/15/20 tons |
| Platform size | Customized |
| Turn over speed | 30-90 sec/90° |
| Power supply | 380V/50Hz/3Ph |
| Output | 3Kw…. |
- 90 degree turn over to change the coil to ideal direction;
- V saddle with anti wearing Nylon boards for bearing the heavy coils;
- Electrical model with chain and gear sprocket mechanism to power the machine;
- Separated control cabinet away from the turn over machine, keep the safety of personnels;
- Four steel made wheels to support the heavy loads;

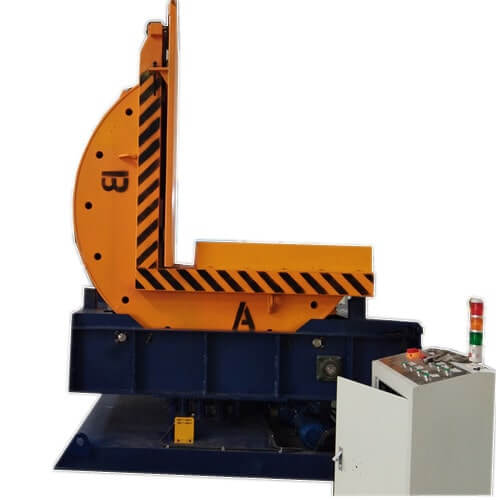

- Rotating base for loading the coils and discharging the coils at the same sides.
| Turn over degree | 90° |
| Rotating degree | 180° |
| Max load | 5/10/15/20 tons |
| Platform size | Customized |
| Turn over speed | 30-90 sec/90° |
| Power supply | 380V/50Hz/3Ph |
| Output | 4Kw…. |
More accessories and special design or customization are acceptable, welcome to contact our team with your specific requirement and data information.
