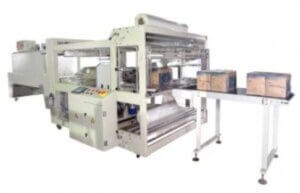

Automatic Big Boxes Shrink Wrap Machine Four Side Sealing Machine

2 Comments

cardboard box sealing and thermal shrink wrapping machine
cardboard box sealing and thermal shrink wrapping machine

cardboard box sealing and thermal shrink wrapping machine

Automatic Big Boxes Shrink Wrap Machine Four Side Sealing Machine

Application:
Flooring board, windows, doors, ceramic tiles, electrical appliance, etc.

Automatic Big Boxes Shrink Wrap Machine Four Side Sealing Machine

Sealing type 4 side sealing
Power supply 380V/50-60Hz/3phase
Conveyor speed 15M/min
Sealing knife width 1100mm
Sealing height 400 mm
Product size 400mm < width + height < 900mm, length > 250mm
Film type single layer polyolefin (POF) film, single layer polyethylene (PE) film
Shrink tunnel conveyor speed variable, max. 40M/min
Shrink tunnel conveyor silicon coated rods
Power consumption max. 20kW
Working height 780-850 mm
Air pressure 0.5MPa (5 bar)
Sealing knife Teflon coated alloyed knife with permanently heated bar
Main control components Siemens PLC and touch screen, Omron temperature controller,relay and sensor
Machine main material powder coated carbon steel
Machine dimension 8900 x 1600 x 1650mm
Machine weight 2000kgs

Automatic Big Boxes Shrink Wrap Machine Four Side Sealing Machine
