Upgraded Steel coil Feeding System with coil Tipper machine

0 Comments

3-in-1-Decoiler-Straightener-and-Feeder-min

The three-in-one machine of uncoiler, straightener and feeder is a device that is well known to most stamping production companies. It integrates three functions of uncoiler, leveling and feeding. It is often used in progressive die stamping and is an indispensable equipment for light and heavy industries. The uncoiler part and the straightener and feeder part of the equipment adopt a one-piece design, with a total length of 3.2-4.6 meters, compact structure and small footprint.

Main Features of the Uncoiler part:

  • The mandrel adopts hydraulic tensioning, which saves time and effort;
  • The pneumatic clamping arm cooperates with the disc brake device to ensure that the material does not fall during the production process;
  • The pressing arm fixes the material for easy loading and unloading;
  • The support arm holds up the material, which is convenient for feeding the material onto the straightener and feeder;
  • The start and stop of the material rack is controlled by a photoelectric sensor, which fundamentally avoids scratches on the surface of the material.

Main Features of the Straightening Feeder:

  • Equipped with a folding arm to press the coil head, so that the coil enters the straightening feeder smoothly and quickly;
  • The straightening feed roller is an eccentric structure for adjusting the worm gear. At the same time, electric adjustment is an option, which will be more convenient to operate;
  • The high-rigidity mechanical structure cooperates with the Mitsubishi servo control system to ensure high-precision feeding;
  • Humanized operating system: 7-inch Mitsubishi touch screen display.

In order to meet customer requirements, we have also upgraded the feeding system of this compact press, changing the traditional cart to a coil tipper cart, which provides convenience for loading.

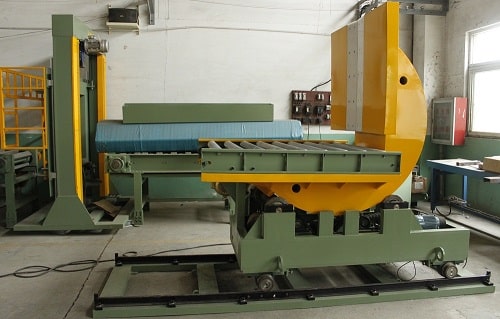

coil tipper with trolley for loading steel coils onto the decoiler-min

Specifications:

Coil width: 50-600mm
Coil thickness: 0.5-4.5mm
Coil weight: 5000kgs

This coil tipper can automatically turn over the steel coil. The turned steel coil can be directly pushed to the front of the uncoiler by the cart, and the loading can be realized through a series of operations such as lifting, pushing, and tightening. The combination of the coil tipper cart and forklift can save time and complete the loading efficiently.
