Automatic Pallet Wrapper/Turntable Stretch Film Pallet Wrapper with Conveyor System

0 Comments

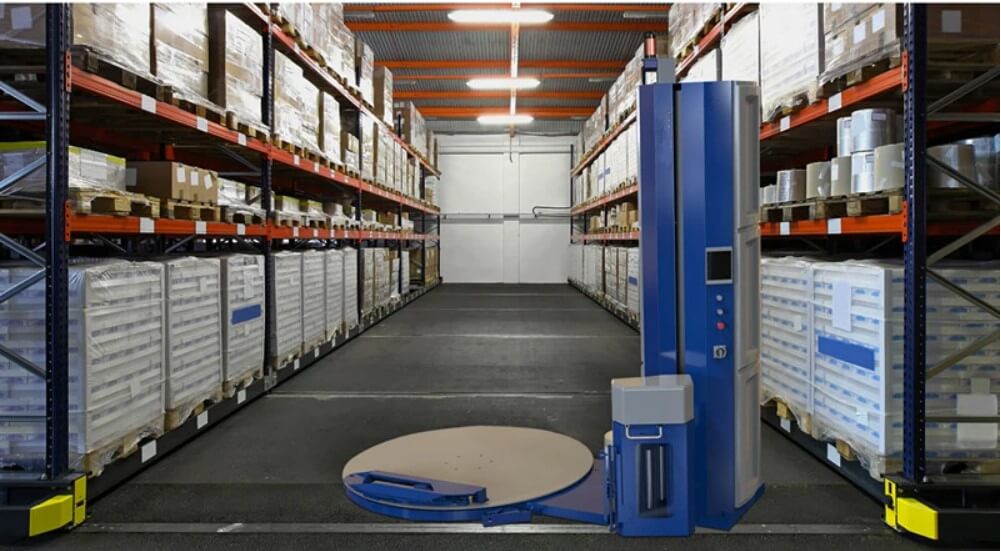

Turntable Stretch Film Pallet Wrapper

Automatic Pallet Wrapper/Turntable Stretch Film Pallet Wrapper with CE Certification

Automatic turntable pallet stretch film wrapper is used toghter with packaging line and controlled by PLC.
It can realized a complete set of packaging processes ,such as automatic detection,conveying and packing .
Whole process without any person.

Turntable Stretch Film Pallet Wrapper

Turntable Stretch Film Pallet Wrapper

Features
1.Easy to operate
2.Easy to load turntable
3.Wraps tighter with less film
4.Reliable load height sensing
5.Safe operation
6.Easy to care for

Technical parameter
Model TP2000FZ automatic pallet wrapper
Wrap Size(L*W) (500-1200)mm*(500-1200)mm
Max. Packing Height 2400mm
Packing Efficiency 20-40 pallets/h
Turntable Speed 0-12rpm variable frequency adjustable speed, soft start/stop turntable
Film Delivery System Pre stretching the film frame, pre-stretch ratio up to 250%
the automatic film feeding DC speed regulating system
Lifting Column Double chains structure,available lifting speed.
Control System PLC control,winding layers and numbers adjustable,the more the top height adjustable
Auto load height sensing photo-eye, reinforcement, turntable automatically reset
Max Loading Weight 2000kg
Machine Size 3200*2000*2100mm
